Unity of Powers!

With the comfort provided by less recoil advantage of gas-operated systems and the ability to shoot any load from lighter 24 gr. (7/8 oz.) up to 50 gr. (1 ¾ oz.) heavy magnum loads through the active valve system, and now, together with the proven rotating locking head bolt, the new HYBRID Series is here!

In addition to all these technical specifications and in combination with familiar Akdas quality, we have created a shotgun that suits any shooter or hunter seeking everything on a single gun.

The recoil spring is housed in the forend, which increases the strength of the stock and allows a more elegant grip design. Various options, such as composite plastic stocks and camouflage coating, will help you deal with hard hunting conditions.

20 Ga version is also available.

Details

  • Model

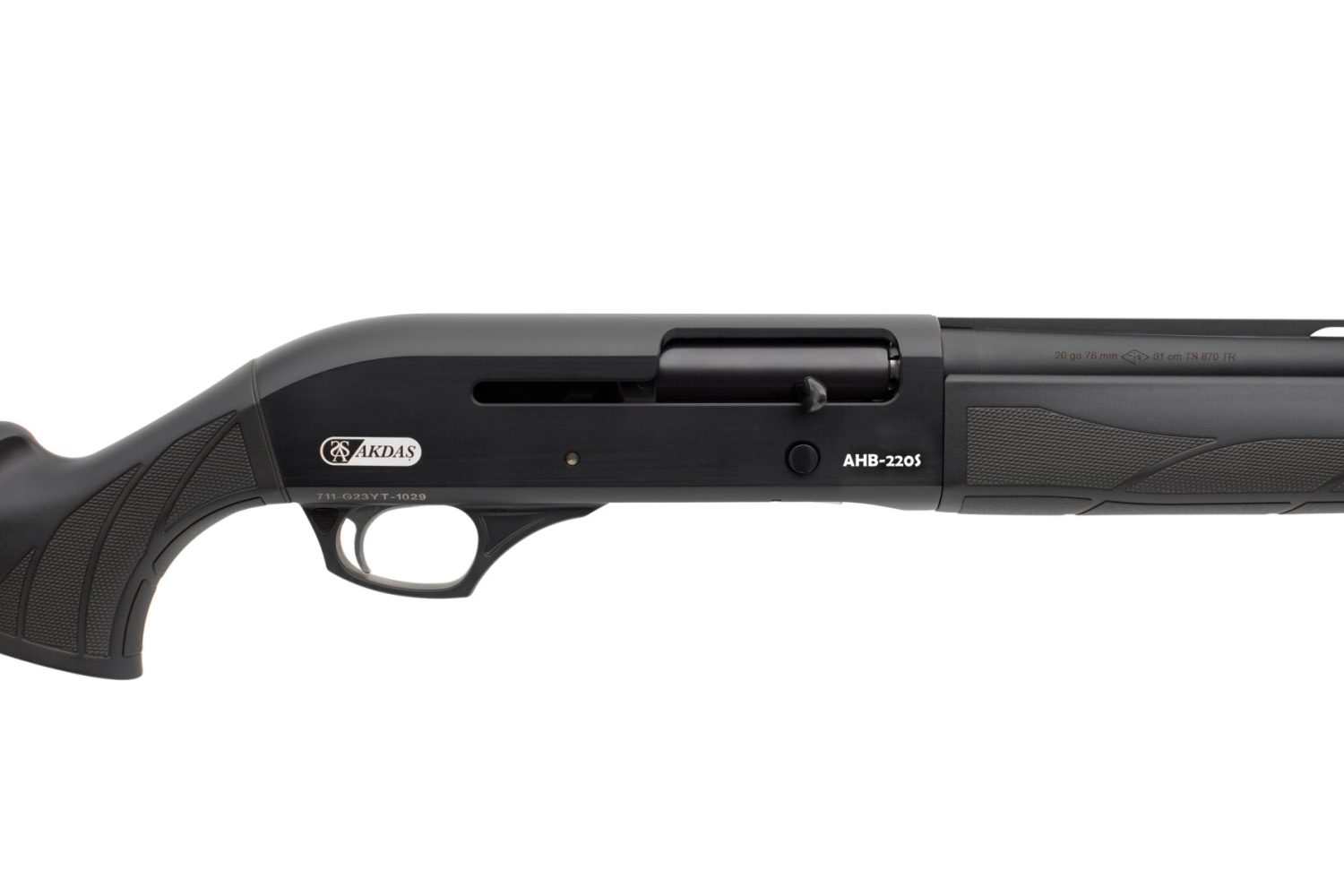

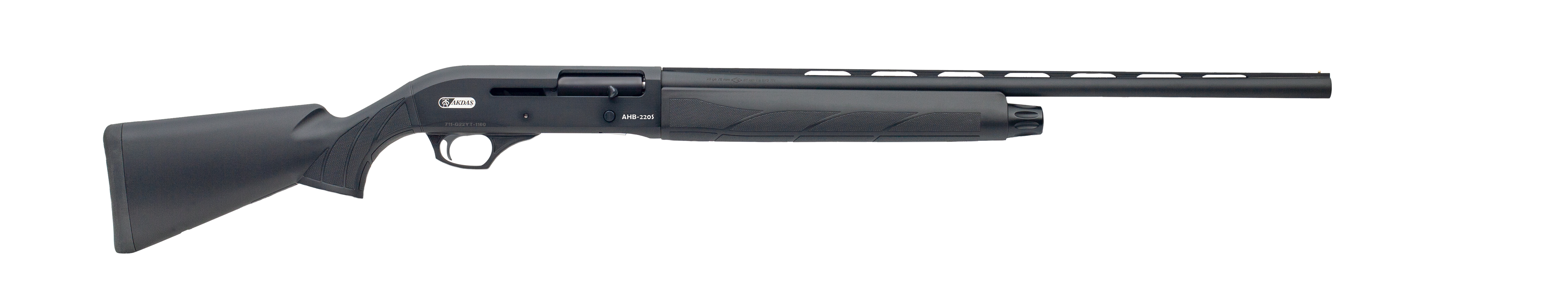

    AHB-220S

  • System

    Gas Operated with Rotating Bolt Head

  • Caliber

    20 ga

  • Barrel Length

    61 cm, 66 cm, 71cm (26”, 28”, 30”)

  • Chamber

    76 mm (3”)

  • Chokes

    MCH (F*, M***, C*****)

  • Magazine Capacity

    4+1

  • Front Sight

    Brass Bead

  • Safety

    Manual

  • Trigger Pull Weight

    2,2 – 2,5 kg (4.8 – 5.5 lb.)

  • Length of Pull

    357, 367,320 mm (14”, 14.45”, 12")

  • Drop at Comb/Heel

    37/57 mm (1.45”/ 2 .25”)

  • Stock Shims

    +5 : 39/61 mm (1.53”/2.40”) -5 : 35/51 mm (1.37”/2”) -10: 33/47 mm (1.29”/1.85”) -15: 32/43 mm (1.25”/1.69”)

  • Stock

    Composite Plastic

  • Barrel

    AISI 4140 Carbon Steel

  • Receiver

    7075-T6 Aluminum Alloy

  • Total Length

    121 cm (47.5” - 66 cm/26” barrel)

  • Optional

    Fiber Optic Sight
